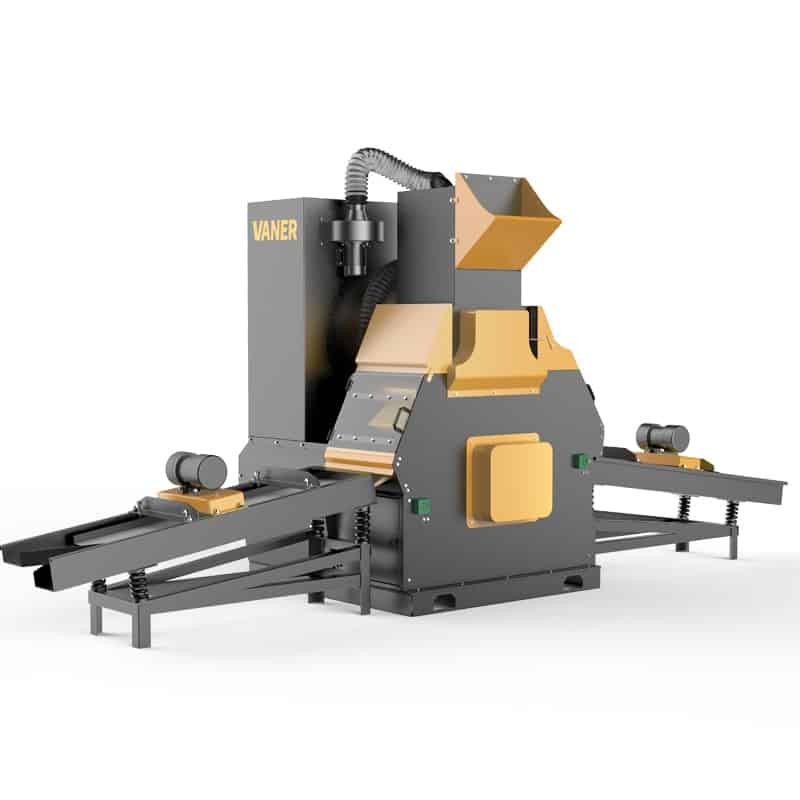

V-S10 Copper Wire Chopper Machine 100-150 kg/h

Description

With a VANER Copper Wire Chopper, cost-effectively separate precious metals like aluminum and copper from insulation materials – an impossible task without the right equipment to handle it!

VANER can help to understand if a Copper Wire Chopper is right for recycling goals.

The S10 is a compact wire chopping machine specifically designed to recover copper from cables while consuming minimal energy. It can separate two different densities of wire with 99.9% accuracy and can process more scrap wire and wire at a higher rate than almost any other equipment, also featuring a self-cleaning mode to reduce maintenance and remove dust.

The V-S10 is a professional helper for recycling yards, processing up to 220-331 lb of scrap wire and wire per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more

Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.

V-S10 240v/480v 3ph Copper Wire Chopper:

Model	V-S10	V-S10
Range	0.1-30 mm	0.1~1.19 in
Weight	1066 kg	2350 lb
Dimensions	L2040W1650H2220 mm	80.36587.4 in
Power	17.8 kw	23.9 hp
Processing Capacity	100~150 kg/h	220-331 lb/h

Includes:
- 18.5kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- 4.5kw Air system (air blower + air suction)
- Electric carbinet
- 2 Small vibration tables
- 1 Set blades (SKD-11 10pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves
- 2 Separators sieves (200mesh+250mesh)
- 3 Small vibrating sieves
- 1 Set tool box

Consider optional accessories:
We recommend adding accessories
-Pre-crushing device
-Conveyor belt with magnetic separation device
-Small vibrating screen
This accessory process a large amount of fine and thick wires at the same time efficiently and accurately.
Specifications:
V-EB400 Pre-shredder Specifications
● Power: 5.4hp 60hz 3phase
● Dimensions: 1160x600x1450 mm
● Weight: 1102 lb

How does the V-S10 Copper Wire Chopper work?
The V-S10 separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.

To learn more about the V-S10 and our full range of scrap metal recycling equipment, contact the experts at Vaner!
We will discuss and recommend the right equipment and accessories.
