Description

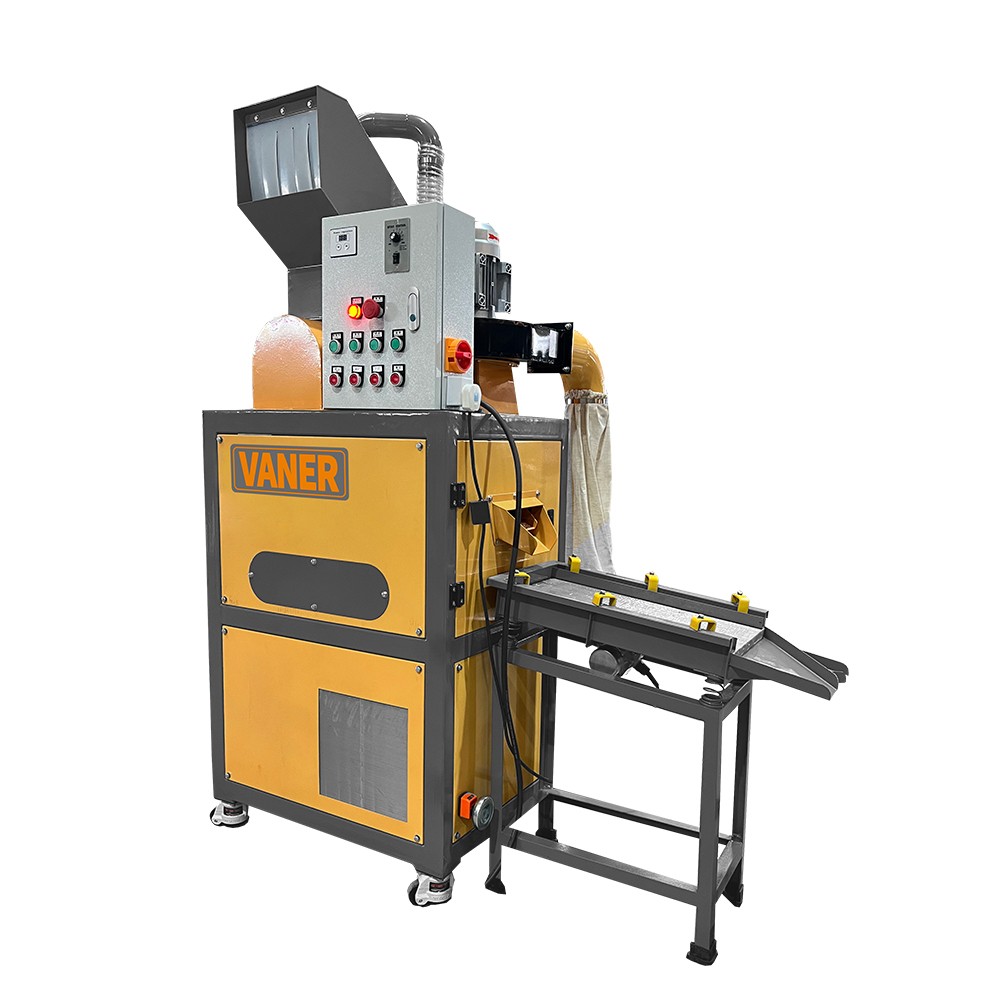

VANER V-C01-C copper wire granulator, cost-effectively separate precious metals like copper from insulation materials.
The C01-C is a compact copper granulator specifically designed to recover copper from cables while consuming minimal energy. The purity of recovered copper can reach 99%, also featuring a self-cleaning mode to reduce maintenance and remove dust.
The C01-C is a professional helper for homes, small factories and small scrap plants, processing up to 66-110 lb of scrap wire and wire per hour.
The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more
Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.
C01-C 240v/480v 3ph/Single phase Wire Granulator:
| Model | V-C01-C | V-C01-C |
| Range | ≤22mm | 0~0.98 in |
| Weight | 340 kg | 749 lb |
| Mea | L900*W720*H1785mm | 35.4*28.3*70.27in |
| Power | Thressphases5.3kw/ Singlephase4.3kw | Thressphases7.1hp/ Singlephase5.36hp |
| Processing Capacity | 30-50 kg/h | 66-110 lb/h |
Includes:
- Granulation crusher
- Air flowing vibration separator
- Dust Collector
- Air system (air blower + air suction)
- Electric carbinet
- 1 Set blades
- Crusher sieves
- Separators sieves
- 1 SET Tool Box
Copper Cable Recycling Solutions: Choosing the Right Copper Granulator:
* Copper granulators are ideal for processing mixed, tangled, or fine scrap wires that are difficult to handle with manual wire stripping machines.
* For heavy or moderately thick armored cables, a system equipped with a pre-shredder is recommended to prevent blade jamming.
* For automotive wiring harnesses, a talc powder injection system is recommended to prevent issues such as tape tangling and material sticking.
* For cables with plugs, ensure the system includes a magnetic separator to remove ferrous components.
* For extremely fine capillary wires, an electrostatic separator is recommended to prevent fine copper strands from being blown away along with the plastic.
* To ensure optimal separation results, look for equipment featuring adjustable airflow, a reliable vibrating table, a dust collection system, and durable blades.
How does the C01-C Copper Wire Granulator work?
The C01-C separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.
To avoid disrupting your production flow or wasting energy, please let me know:
What type of wire do you primarily process? Is it household Romex cable, automotive wiring harnesses, or thick industrial cable?
What is your daily processing volume (in pounds or kilograms)?
I can help you determine the ideal specifications and features for your copper granulator.
