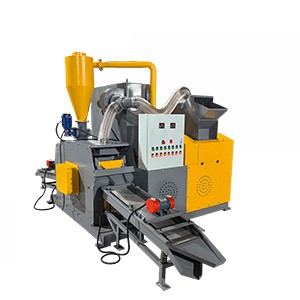

V-X20 Automotive Wire Harness Recycling Machine 1600-2400 kg/day

Description

With a VANER Automotive Wire Harness Recycling Machine, cost-effectively separate precious metals like aluminum and copper from insulation materials – an impossible task without the right equipment to handle it!

VANER can help to understand if a wire recycling machine is right for recycling goals.

The X20 is a compact copper wire granulator specifically designed to recover copper from cable wires while consuming minimal energy. It can separate two different densities of wire with 99.9% accuracy and can process more scrap cable wire at a higher rate than almost any other equipment, also featuring a self-cleaning mode to reduce maintenance and remove dust.

The V-X20 is a professional helper for recycling yards, processing up to 441-661 lb of scrap cable wire per hour.

The types of scrap it can process include:
● Wire harnesses
● Automotive wires
● Industrial cables
● Household wires
● And more

Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.

V-X20 240v/480v 3ph Granulator:

Model	V-X20	V-X20
Range	0.1-30 mm	0~1.19 in
Weight	2000 kg	4409 lb
Mea	260020002150mm	102.3678.7484.64in
Power	23.67 kw	31.74 hp
Processing Capacity	200-300 kg/h	441-661 lb/h

Includes:

- 15kw Granulation crusher
- 0.36kw Air flowing vibration separator
- 1.5kw Dust Collector
- 2.2kw Air system (air blower + air suction)
- 1 Electric carbinet
- 0.12kw*2 Small vibration tables
- 4.37kw Fan feeding
- 1 Set blades (SKD-11 10pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves
- 2 Separators sieves (200mesh+250mesh)
- 3 Small vibrating sieves
- 1 Set tool box

Copper Cable Recycling Solutions: Choosing the Right Copper Granulator:
We recommend adding accessories* Copper granulators are ideal for processing mixed, tangled, or fine scrap wires that are difficult to handle with manual wire stripping machines.
* For heavy or moderately thick armored cables, a system equipped with a pre-shredder is recommended to prevent blade jamming.
* For automotive wiring harnesses, a talc powder injection system is recommended to prevent issues such as tape tangling and material sticking.
* For cables with plugs, ensure the system includes a magnetic separator to remove ferrous components.
* For extremely fine capillary wires, an electrostatic separator is recommended to prevent fine copper strands from being blown away along with the plastic.
* To ensure optimal separation results, look for equipment featuring adjustable airflow, a reliable vibrating table, a dust collection system, and durable blades.

How does the V-X20 Automotive Wire Harness Recycling Machine work?
The V-X20 separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.

To avoid disrupting your production flow or wasting energy, please let me know:
What type of wire do you primarily process? Is it household Romex cable, automotive wiring harnesses, or thick industrial cable?
What is your daily processing volume (in pounds or kilograms)?
I can help you determine the ideal specifications and features for your copper granulator.
