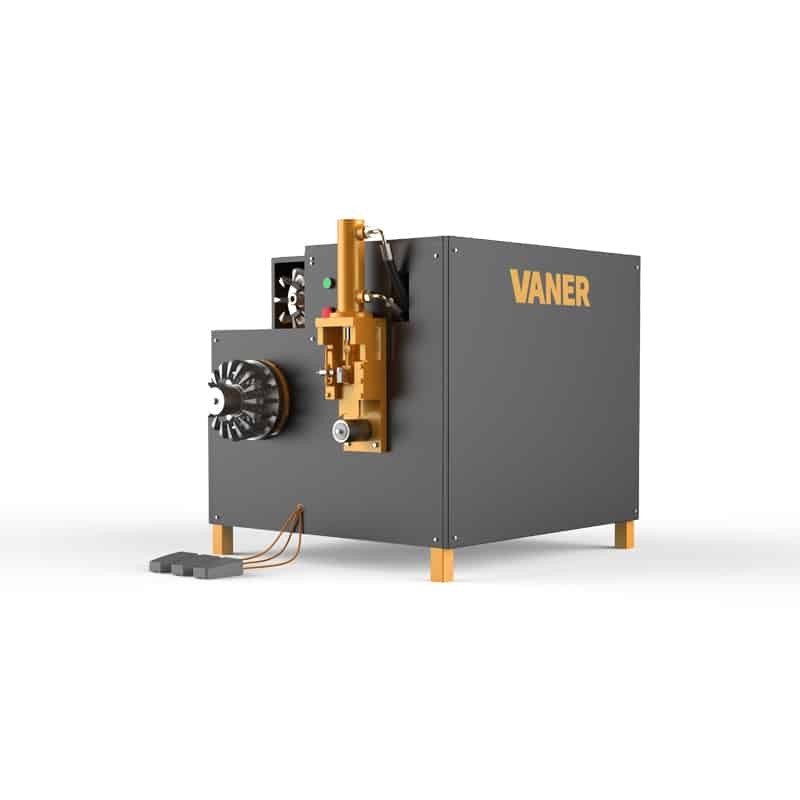

MR-816 Electric Motor Recycling Machine

Description

Electric Motor wrecker is an equipment designed to recover copper present in the motor stator. MR-816 Hydraulic Motor Recycling Machine is a professional tools used for process scrap electric motor stators. It is mainly used for dismantle the small household old appliance motors and has three operation panels: 8-claws + 16-claws + The cutter. The 8-claws and 16-claws are mainly used for extrude the coppers from stators. The cutter is mainly used for cut stators into two apart.

Application
Process all kinds of motor, such as household appliances, washing machines, industrial motor stators, etc.
Our Customers: Metal Recycling Center, Car Recyclers, etc.

Design and Manufacturing:
100% separated copper, low energy consumption, high efficiency, high quality accessories, durable, dust removal system, reliable hydraulic system.

How Recycling Motors Works
-Wrecking the aluminium or cast iron motor housing and removal of the anchor/rotor.
-Splitting the stator or transformer block in 2 parts.
-Separating iron and copper of the stator by means of a hydraulic operation.

Service Support:
● 1 year warranty
● High ROI
● Semi-automatic & easy operate
● Factory stock
● Provide trial video
● Installation and operation training
● Life-long technical support

Technical Specifications
Model
MR-816
Power
5.5kw
Process capacity
0.8~1.6 tons/h
Pressure
30 tons
8-claws cylinder diameter/stroke/copper clawing range
90mm/120mm/Inner diameter＞40mm＜1.5kw
16-claws cylinder diameter/stroke/copper clawing range
140mm/135mm/Inner diameter＞100mm＜7.5kw
Cutter cylinder diameter and stroke
75mm/90mm
Measurement
1.35*1.05*1.15m
Weight
460kg
