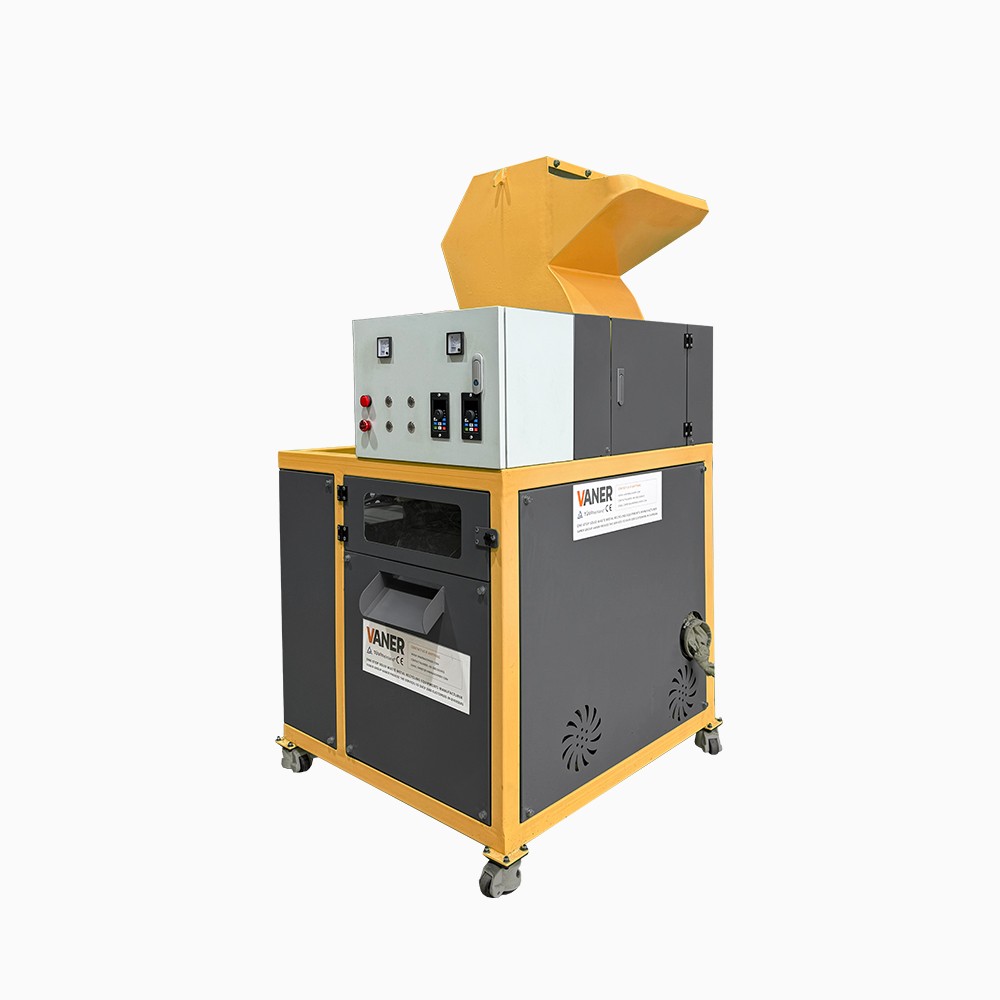

V-C05 Copper Wire Granulator 80-100kg/h

Description

With a VANER cable granulator, cost-effectively separate precious metals like aluminum and copper from insulation materials – an impossible task without the right equipment to handle it!

VANER can help to understand if a wire granulator is right for recycling goals.

The C05 is a compact copper granulator specifically designed to recover copper from cables while consuming minimal energy. It can separate two different densities of wire with 99.9% accuracy and can process more scrap wire and wire at a higher rate than almost any other equipment, also featuring a self-cleaning mode to reduce maintenance and remove dust.The air inlet of the machine fan is equipped with an air filter, which can keep the shaker screen clean for as long as possible and reduce the frequency of cleaning.

The C05 is a professional helper for homes, small factories and small scrap plants, processing up to 176-220 lb of scrap wire and wire per hour.

The types of scrap it can process include:
* Household cables
* Automotive cables
* Square wires
* Wires
* And much more!

Service Support:
● 1-year warranty provided
● Lifetime after-sales
● Low maintenance
● Machine testing provided
● Installation and operation training.

C05 240v/480v 3ph Granulator:

Model	V-C05	V-C05
Range	0.1-35 mm	0~1.38 in
Weight	430 kg	947 lb
Dimensions	L1100 * W1100 * H1830 mm	43.343.372 in
Power	6.7 kw	9.1 hp
Processing Capacity	80-100 kg/h	176-220 lb/h

Includes:
- 5.5kw Granulation crusher
- Air flowing vibration separator
- Dust Collector
- Air system (air blower + air suction)
- 1 set of air filter
- Electric carbinet
- Small vibration tables
- 1 Set blades (3pcs rotary blades + 2pcs fixed blades)
- 3 Crusher sieves (2.5mm+3mm+4mm)
- 2 Separators sieves (200mesh+250mesh)
- 1 Set tool box

Consider optional accessories
We recommend adding accessories
-Pre-crushing device
-Conveyor belt with magnetic separation device
-Small vibrating screen
This accessory process a large amount of fine and thick wires at the same time efficiently and accurately.
Specifications:
V-EB400 Pre-Shredder
Power: 4KW 60hz 3phase
* Dimensions: 1160x600x1450mm
* Weight: 992 lbs.
Conveyor with Magnetic Separator
* Motor: 0.25 HP

How does the C05 Granulator work?
The C05 separates copper wire from the plastic coating. The cables and wires are then cut into pellets. The copper pellets are directed away from the insulation (copper is heavier, plastic is lighter) by an airflow gravity sorting system. The copper pellets are fed into separate boxes. The airflow sorting produces a 99.9% purity copper.
The entire process is relatively quiet because we partially soundproof the components.
The self-cleaning dust collection system reduces maintenance time and eliminates dust.

To learn more about the C05 and our full range of scrap metal recycling equipment, contact the experts at Vaner!
We will discuss and recommend the right equipment and accessories.
